Paxis Scaffolding

Paxis 7 — This is a picture of the Paxis 7 scaffold.  The Paxis 7 is designed to build domes between 32’ and 50’.

Paxis 7 — This is a picture of the Paxis 7 scaffold. The Paxis 7 is designed to build domes between 32’ and 50’. (Monolithic)

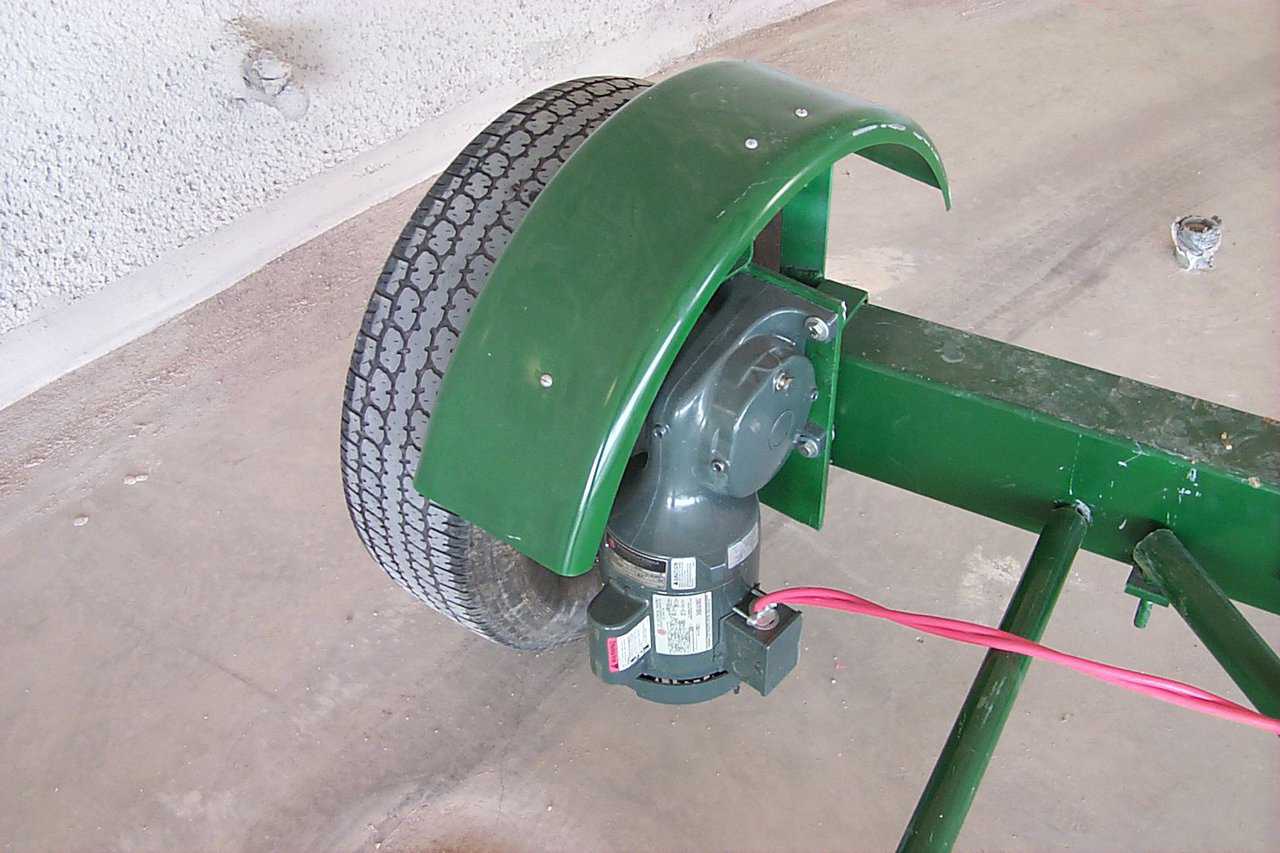

Drive Wheel — This is a picture of the drive wheel.  Its a single speed, forward and reverse motor, that provide a steady, strong, even pace while spraying material.  Its controlled by a hand held switch on a long cord so that it can be driven by either the operator of the scaffold, or the man on the floor watching hoses.

Drive Wheel — This is a picture of the drive wheel. Its a single speed, forward and reverse motor, that provide a steady, strong, even pace while spraying material. Its controlled by a hand held switch on a long cord so that it can be driven by either the operator of the scaffold, or the man on the floor watching hoses. (Monolithic)

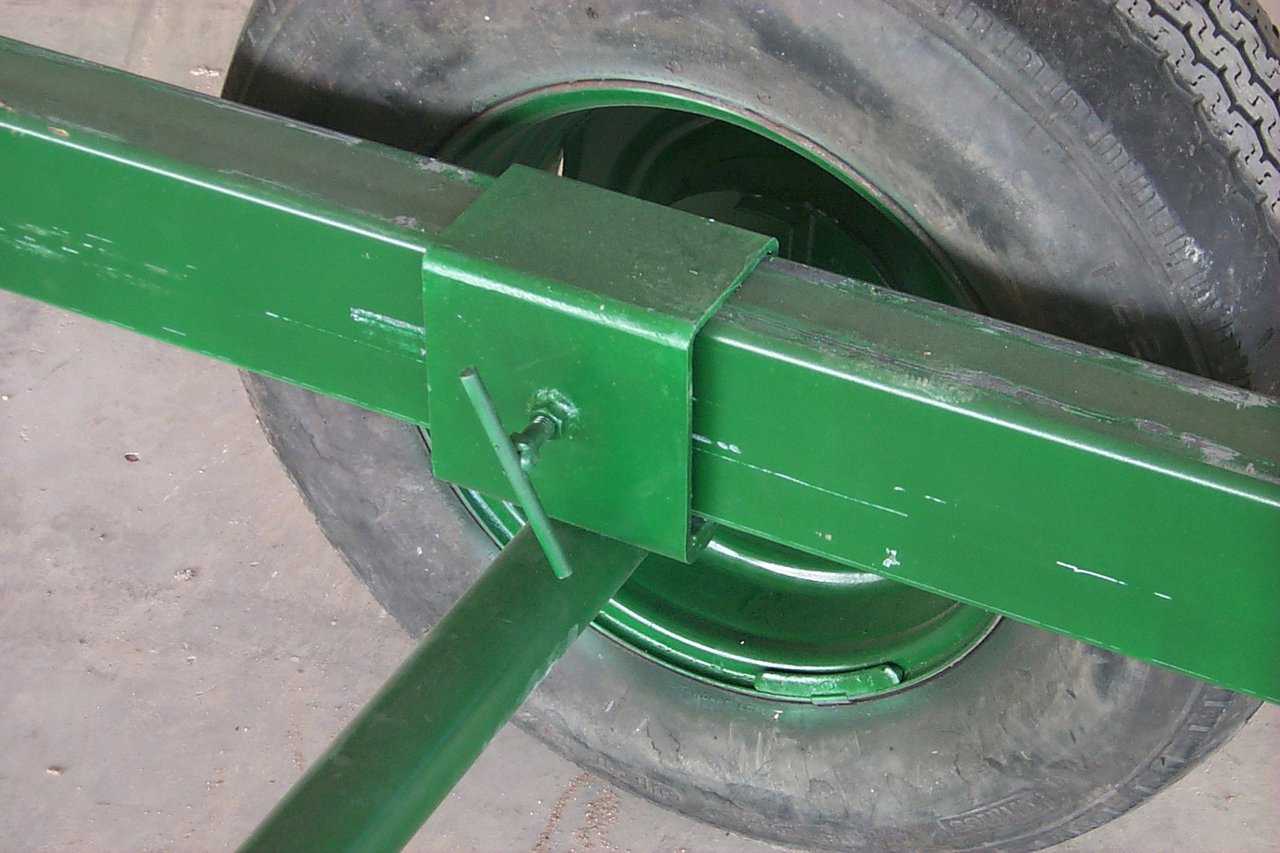

Center Pivot — The center pivot axle is attached directly to the floor with a rotating center post.  The beams can then be slid in or out to adjust for different diameter domes, then screwed in tight so they don’t slip out.

Center Pivot — The center pivot axle is attached directly to the floor with a rotating center post. The beams can then be slid in or out to adjust for different diameter domes, then screwed in tight so they don’t slip out. (Monolithic)

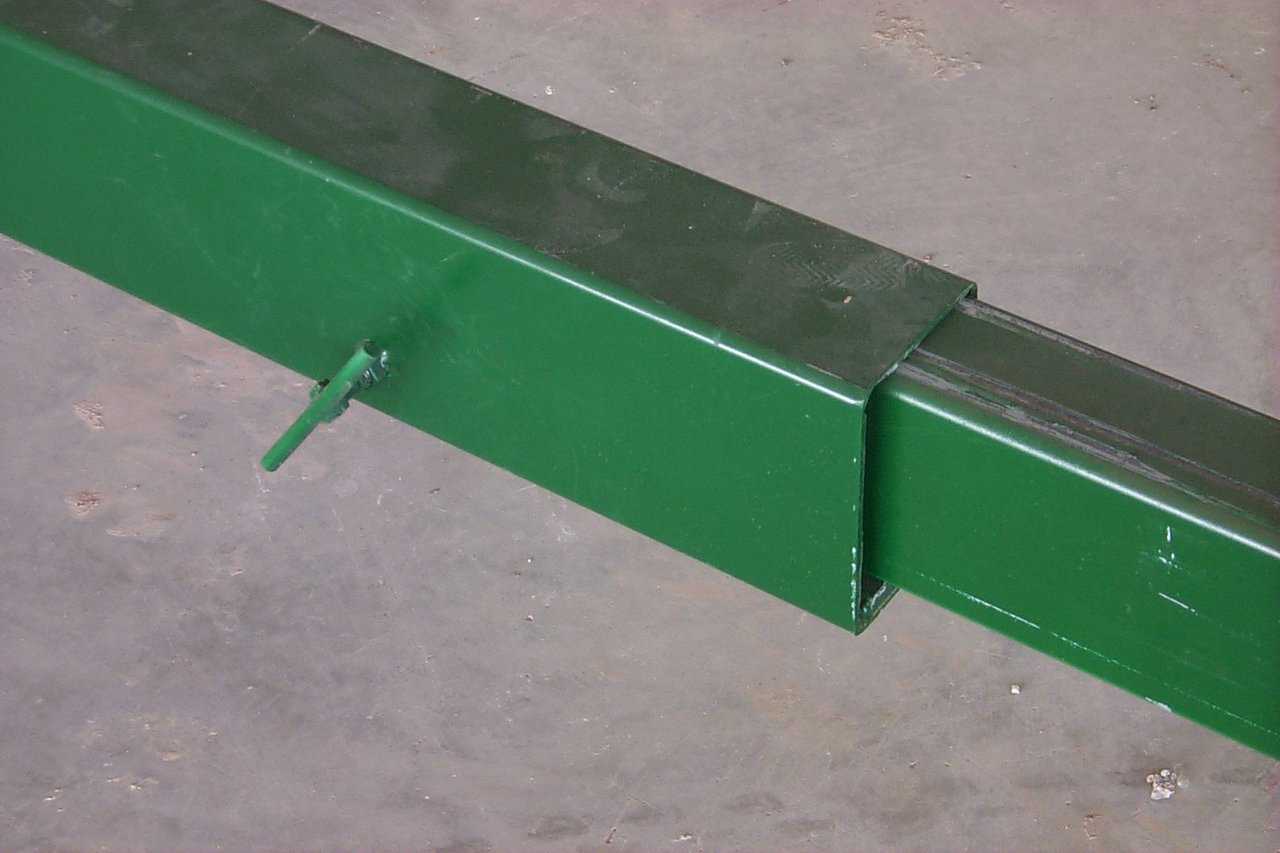

Scaffold Beam — The scaffold beams are also adjustable.  This makes it easier to build any size dome, and makes for easy transport since the beams will slide in together.

Scaffold Beam — The scaffold beams are also adjustable. This makes it easier to build any size dome, and makes for easy transport since the beams will slide in together. (Monolithic)
