Steel Rebar Placement in a Monolithic Dome

Workers attaching hoop rebar to rebar hangers

Workers attaching hoop rebar to rebar hangers

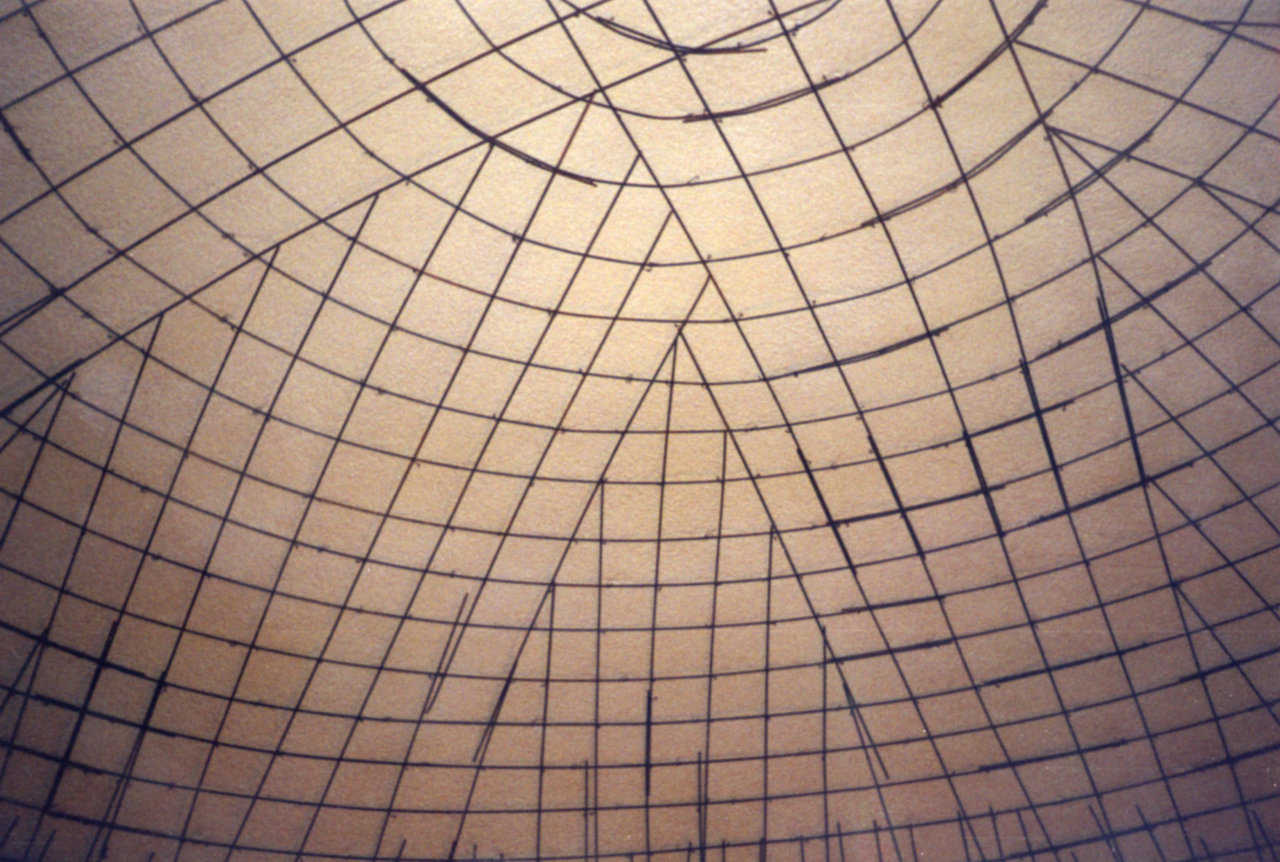

Steel reinforcement ready for shotcrete application

Steel reinforcement ready for shotcrete application

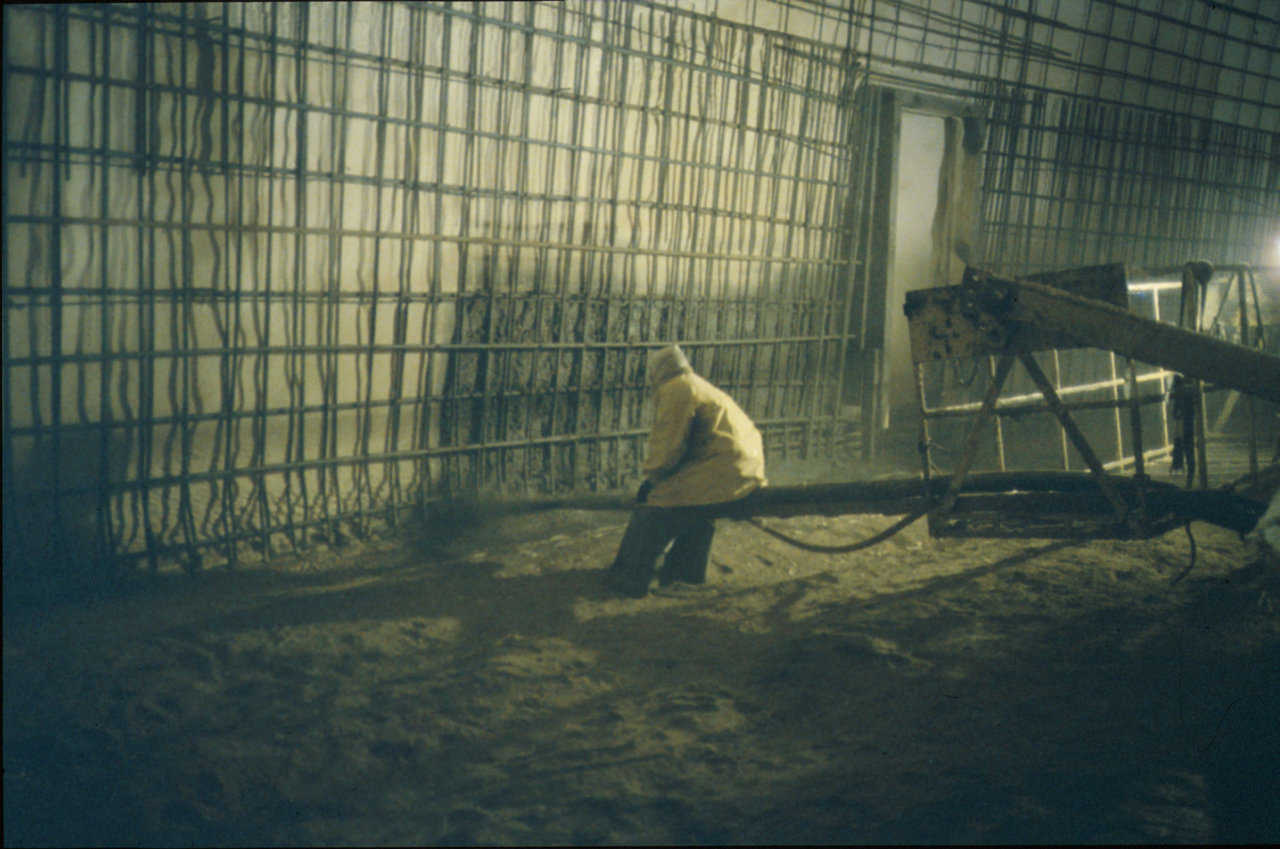

Shotcrete application on a large Monolithic Dome — Shotcrete should be applied in even passes over the entire structure with rebar well-embedded within the concrete.

Shotcrete application on a large Monolithic Dome — Shotcrete should be applied in even passes over the entire structure with rebar well-embedded within the concrete.

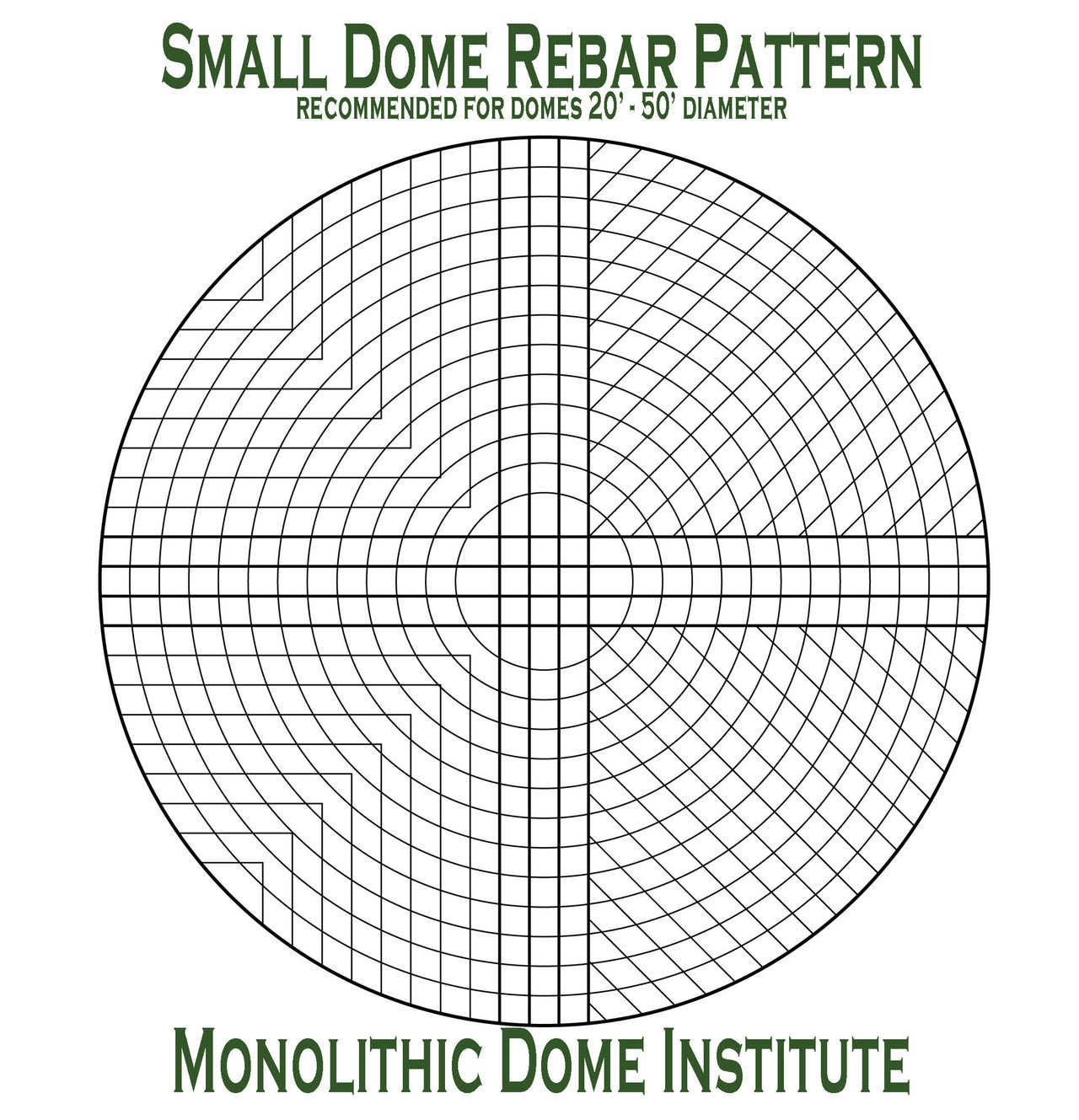

Rebar pattern recommended for small diameter domes (20’-50’).
  Note: The two variations shown.

Rebar pattern recommended for small diameter domes (20’-50’).

Note: The two variations shown.
