Vibrating Screen — Vibrating Screen mounted on top of the EHP 1500. Also compatible with the EHP 2000. Rubber isolators between the screen and the hopper provide optimum vibration from the screen because the vibrator is designed to vibrate the screen and not the pump.

Vibrating Screen — Vibrating Screen mounted on top of the EHP 1500. Also compatible with the EHP 2000. Rubber isolators between the screen and the hopper provide optimum vibration from the screen because the vibrator is designed to vibrate the screen and not the pump.


The Monolithic Vibrating Screen

A better screen

The goal of Monolithic Equipment Manufacturing is to design and create equipment and supplies that make dome building easier. Our new Vibrating Screen definitely makes concrete mixing and spraying much smoother. David South, President of Monolithic said, “I have worked with lots of screens and this one is, by far, better than 99% of what’s available.”

Monolithic’s Vibrating Screen is specifically designed to fit on the hopper of all our pumps. Its sole purpose is to filter out wrong-size aggregate and trash that often comes in aggregate and/or concrete from Ready Mix plants. Also, sand or aggregate may not always mix well. This screen is not intended for the mixer.

How it works

The screen’s dimensions are such that the mixer will dump directly into it. The screen is equipped with an electric vibrator, the most durable and quietest vibrator available. It sits on isolators so aggregate has less tendency to pack the concrete in the pump. The screen can be tilted up and out of the way, making space so the mixture can be agitated with a shovel or the hopper can be cleaned.

The electrically driven vibrator is sized to shake the screen hard enough to drop normal aggregate through without manual effort. Weighing only 100 pounds, the screen is relatively light and easy to handle.

Pricing and purchasing information.

Updated: April 20, 2009

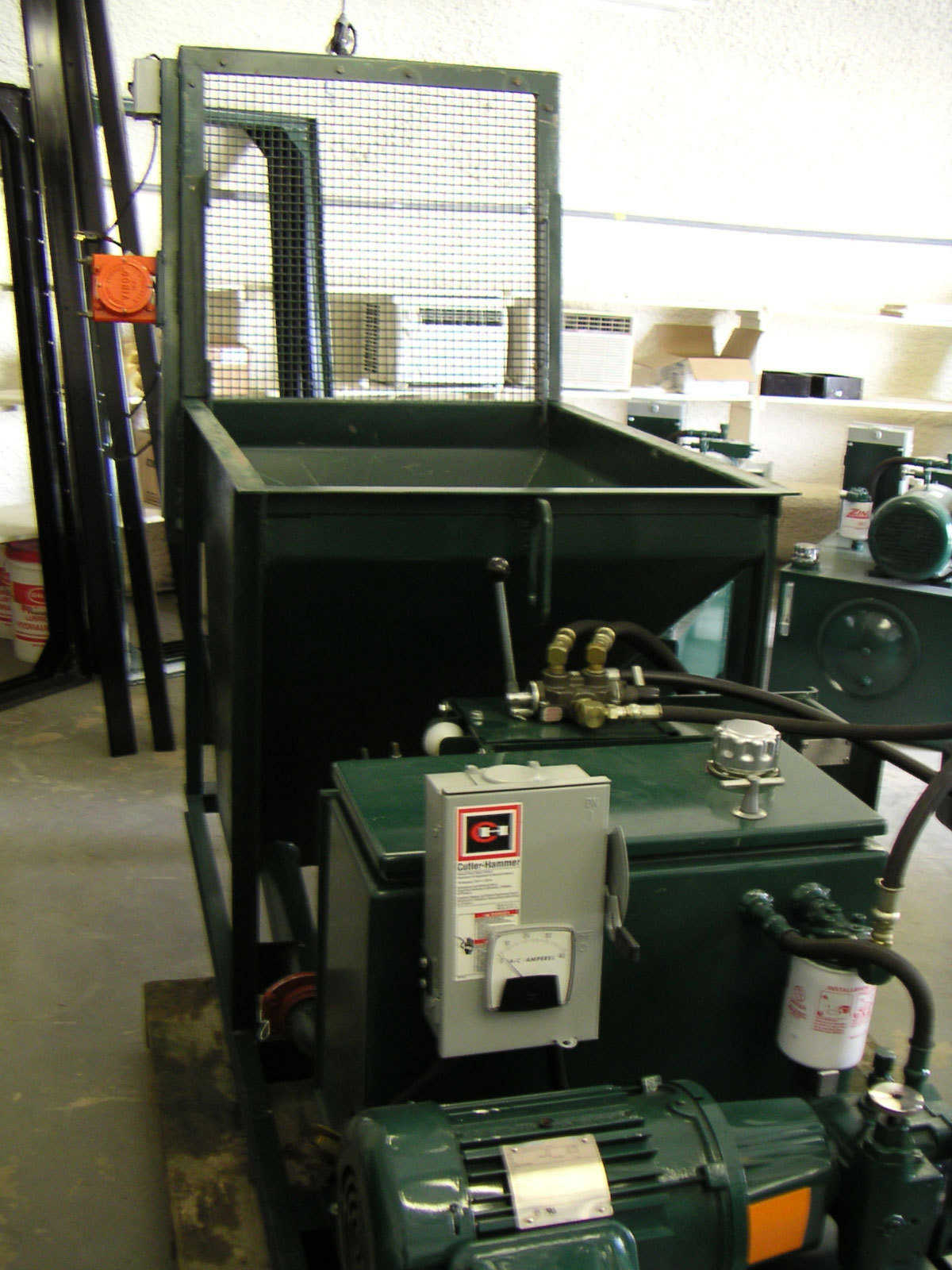

New and Improved — Introducing our new and improved screen! Its added hook at the end of the of the angle iron allows the screen to be stood upright on either end of the hopper. The screen for the small pump can only be stood on one end..

New and Improved — Introducing our new and improved screen! Its added hook at the end of the of the angle iron allows the screen to be stood upright on either end of the hopper. The screen for the small pump can only be stood on one end..

In use — The Vibrating Screen will filter out rocks that are too large for pumping through a shotcrete pump.

In use — The Vibrating Screen will filter out rocks that are too large for pumping through a shotcrete pump.

Crisis Averted — This screen does it’s job by filtering out of aggregate that is too large for pumping.

Crisis Averted — This screen does it’s job by filtering out of aggregate that is too large for pumping. <cite class='credit'>(Javier Figueroa)</cite>
