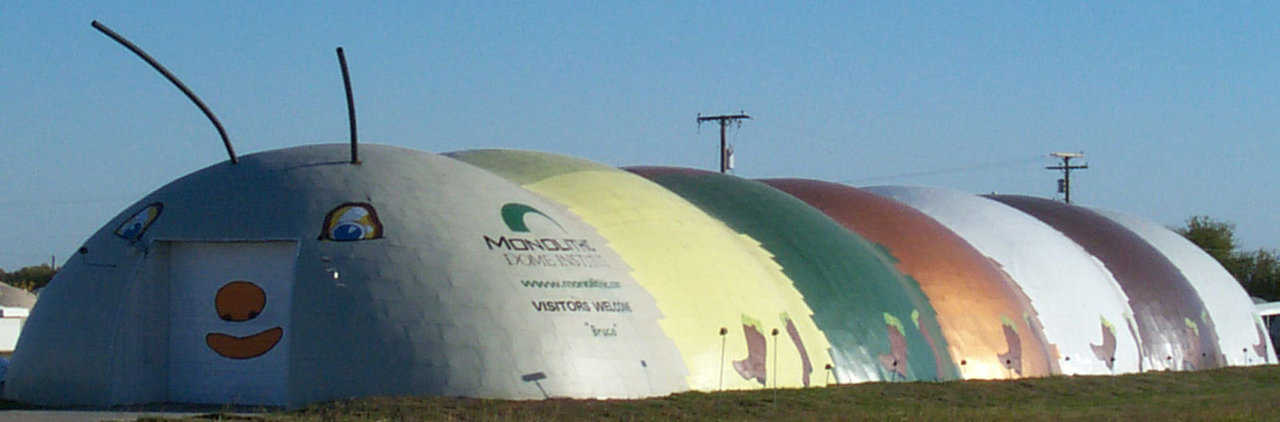

Bruco — Metal cladding comes in a variety of colors and makes a durable, protective coating for a Monolithic Dome.

Bruco — Metal cladding comes in a variety of colors and makes a durable, protective coating for a Monolithic Dome.


Metal Cladding For Domes: The Why And The How

The really nasty!

Why would someone want to cover a Monolithic Dome with metal cladding? David South, Monolithic’s president, says, “Metal cladding is an arrow in the quiver – a problem solver – that’s especially useful when things get really nasty.”

The really nasty, according to David, happens over time to domes that have had their Airforms pulled off or not properly coated and maintained.

“That may take ten years or more, depending on circumstances,” David says, “but eventually it happens. When the urethane foam blanketing the dome is left unprotected, it suffers from exposure to both sunlight and moisture. At night, dew forms on the dome. You won’t even see that layer of dew, but it’s there every night. In the morning, the sun drives that water vapor into the foam and you get blisters.”

Once that happens, the solution may not be to simply cut off the blisters and recoat the foam. “You can still trap moisture inside the foam,” David warns.

Curing the really nasty!

So, how does metal cladding prevent the moisture-trapping from happening? “There’s air movement under the metal shingles that provides an escape route for the water vapor. The moisture rises to the surface and evaporates,” David says. “Nightly dew still forms on the metal clad dome, but instead of working its way into the foam, it simply slides off the shingles.”

Monolithic knows of a number of domes that have been successfully metal clad. Most of these are among the first domes built when Airforms were removed for reuse. A fertilizer storage, in Chandler, Oklahoma, was covered in metal cladding because of these early building practices.

Various thicknesses, widths and colors of steel metal cladding can be ordered from manufacturers and distributors listed on the Web or in local phone directories, usually under roofing or building materials. And since it’s flexible, metal cladding can be more easily fitted over window and door framing.

While the application process is not particularly difficult, it does require some special equipment. In 2001, Monolithic covered Bruco, its factory, with metal cladding.

David recalls that the steel cladding arrived on coils weighing 4000 pounds. It measured .020 inches thick, 2 feet wide and 2000 feet long. He says, “We put the coil on a kind of sleigh, so the metal could slide under rollers that look like old-fashion washing machine rollers. We used a knife to cut rhomboid shaped lengths. Then, we put them together over the foam, lapping the shingles like fish scales, and securing them to the foam with stitch screws.”

Properly applied, a quality metal cladding, with a finish that should last 40 years, is easy to maintain, usually requiring only an occasional water hose shower to remove surface dust.

A colorful dome! — The dome for this rental facility near Rexburg, ID was covered with metal and colorfully painted.

A colorful dome! — The dome for this rental facility near Rexburg, ID was covered with metal and colorfully painted.

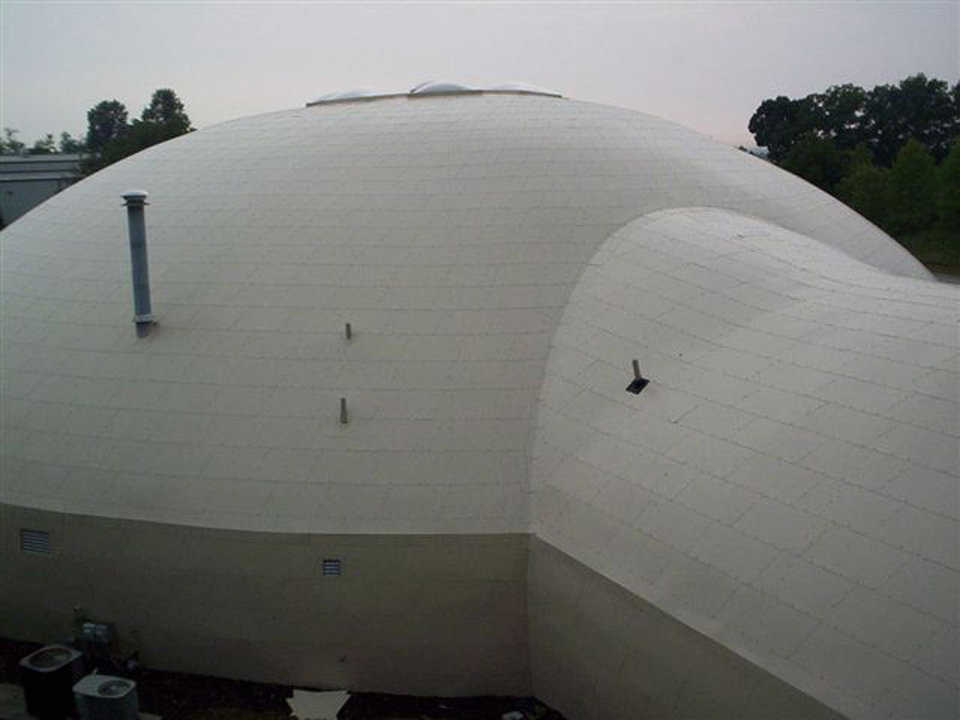

Galaxy Four Theater — This new Monolithic Dome theater is clad in an attractive metal coat that can be easily seen from a distance.

Galaxy Four Theater — This new Monolithic Dome theater is clad in an attractive metal coat that can be easily seen from a distance.

Round-and-round they go! — Workers encircle the dome with metal cladding.

Round-and-round they go! — Workers encircle the dome with metal cladding.

A problem solver —  David South, Monolithic’s president, says, “Metal cladding is an arrow in the quiver – a problem solver – that’s especially useful when things get really nasty.”

A problem solver — David South, Monolithic’s president, says, “Metal cladding is an arrow in the quiver – a problem solver – that’s especially useful when things get really nasty.”

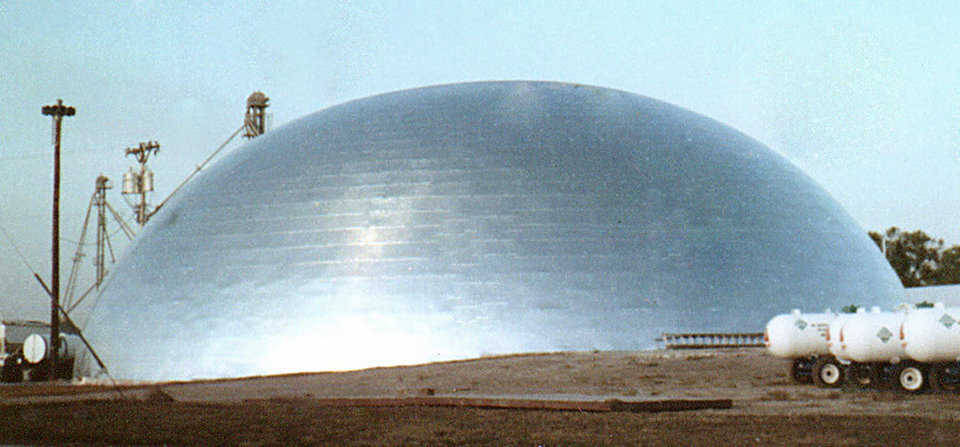

Fertilizer Blend Plant – Petersburg, NE — This Monolithic Dome with a diameter of 105’ has a metal cladding that should last at least 40 years with minimal maintenance.

Fertilizer Blend Plant – Petersburg, NE — This Monolithic Dome with a diameter of 105’ has a metal cladding that should last at least 40 years with minimal maintenance.

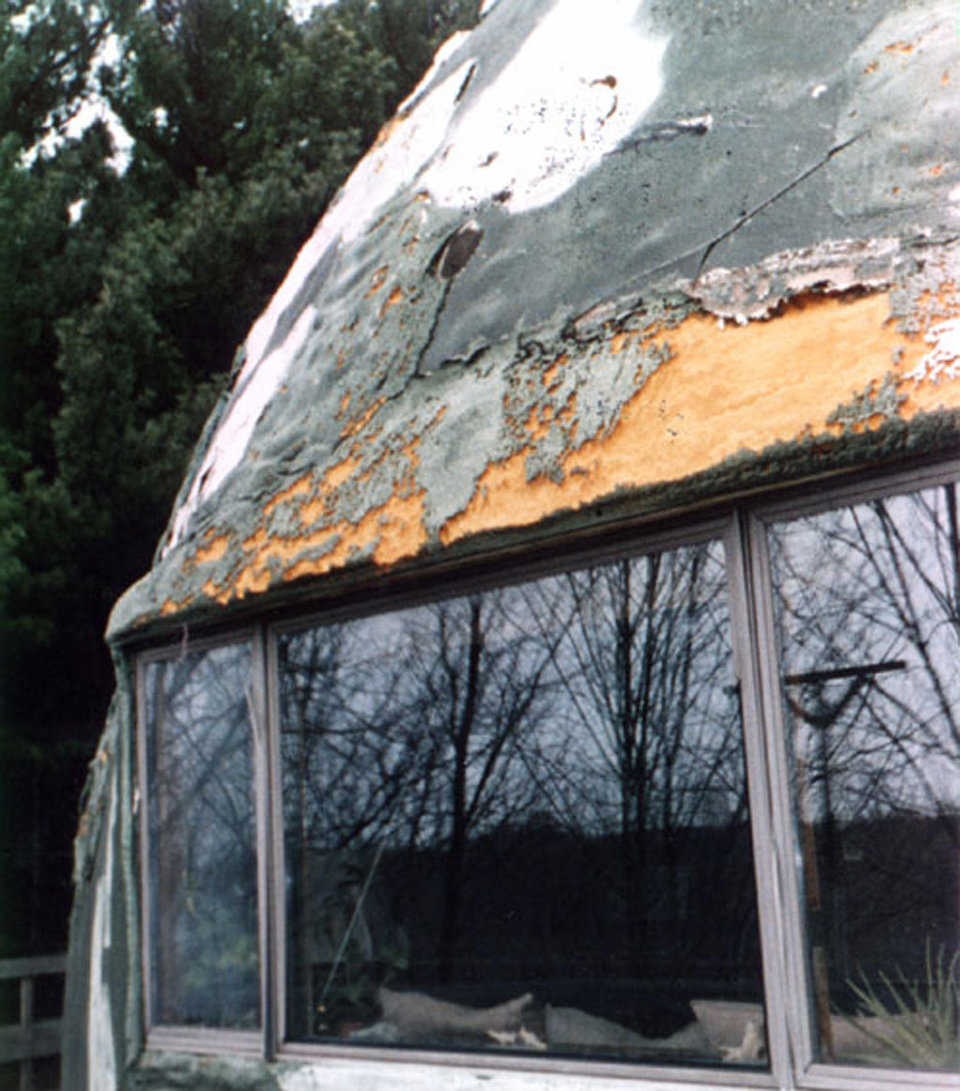

Really nasty! — Coating on this dome completely failed and left the foam exposed to ultraviolet rays that will break down the foam rapidly.

Really nasty! — Coating on this dome completely failed and left the foam exposed to ultraviolet rays that will break down the foam rapidly.

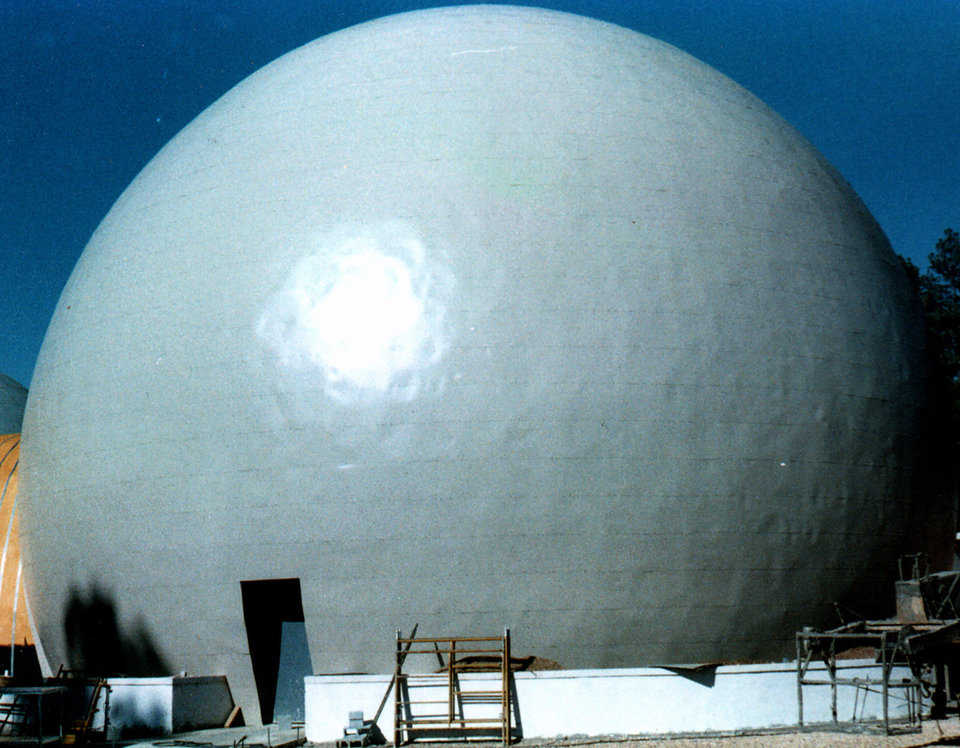

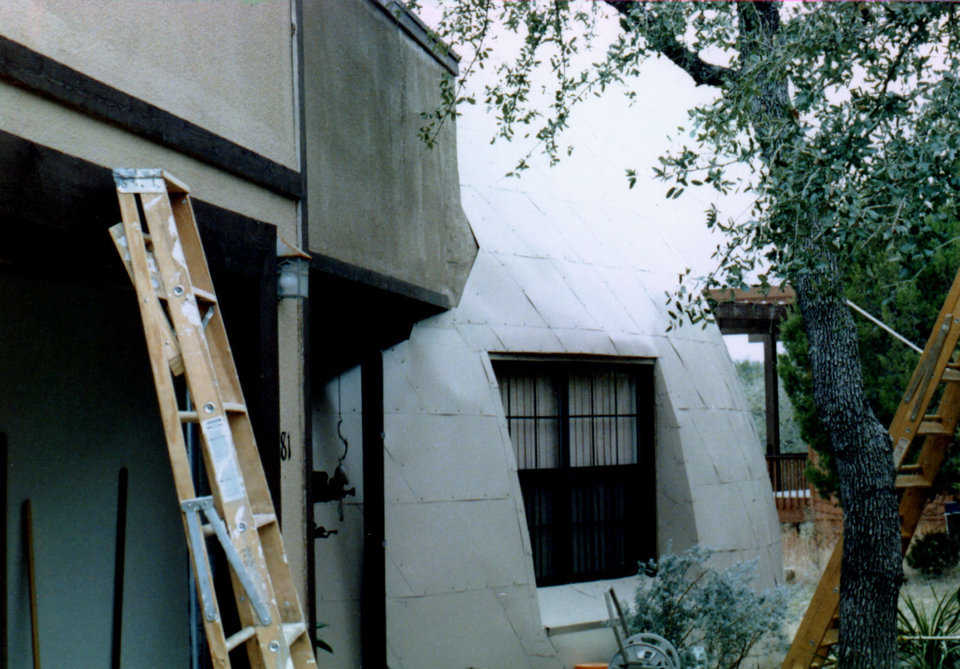

Pretty! — Metal cladding cleaned, improved the looks of and provided a permanent solution for this dome-home.

Pretty! — Metal cladding cleaned, improved the looks of and provided a permanent solution for this dome-home.

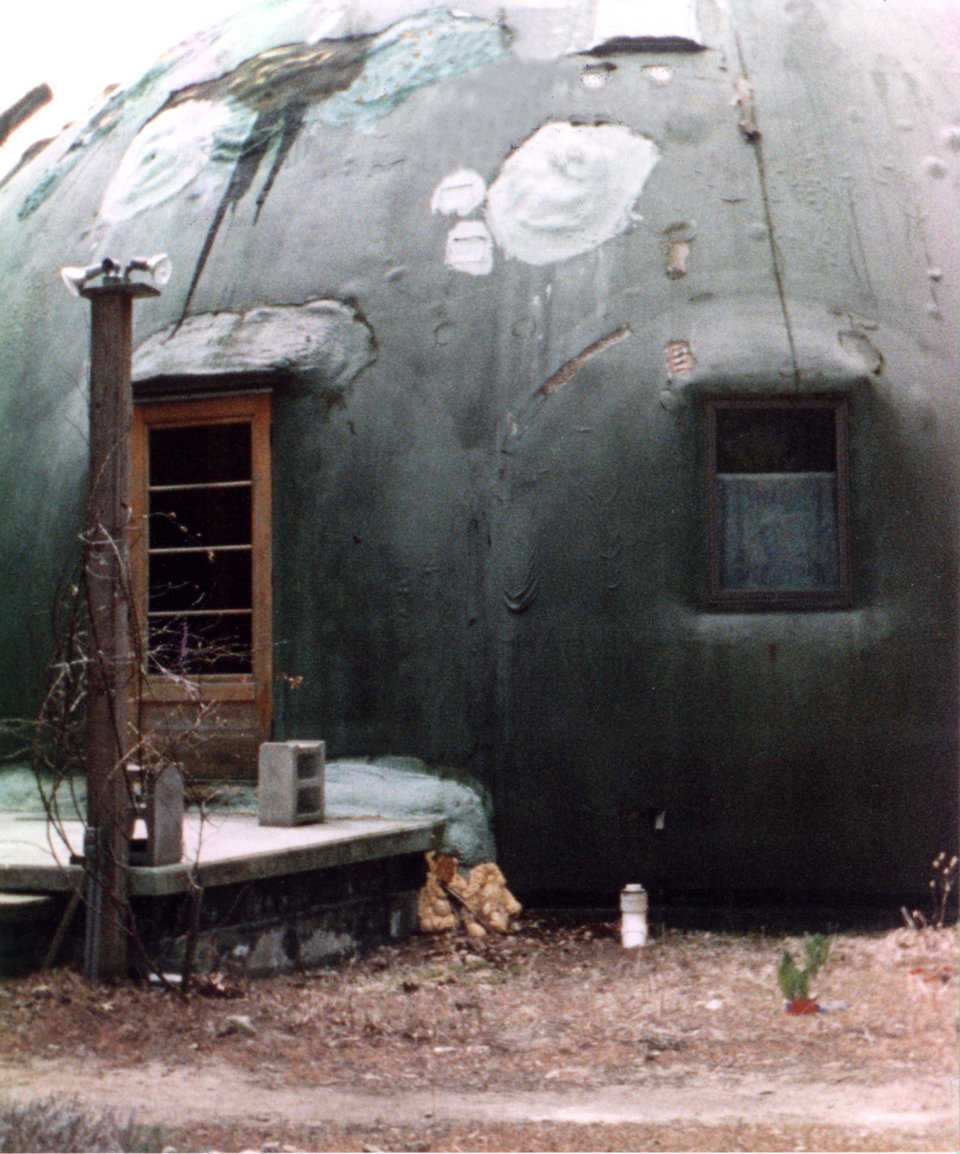

Another real nasty! — Really nasty happens over time to domes that have had their Airforms removed or not properly coated and maintained.

Another real nasty! — Really nasty happens over time to domes that have had their Airforms removed or not properly coated and maintained.

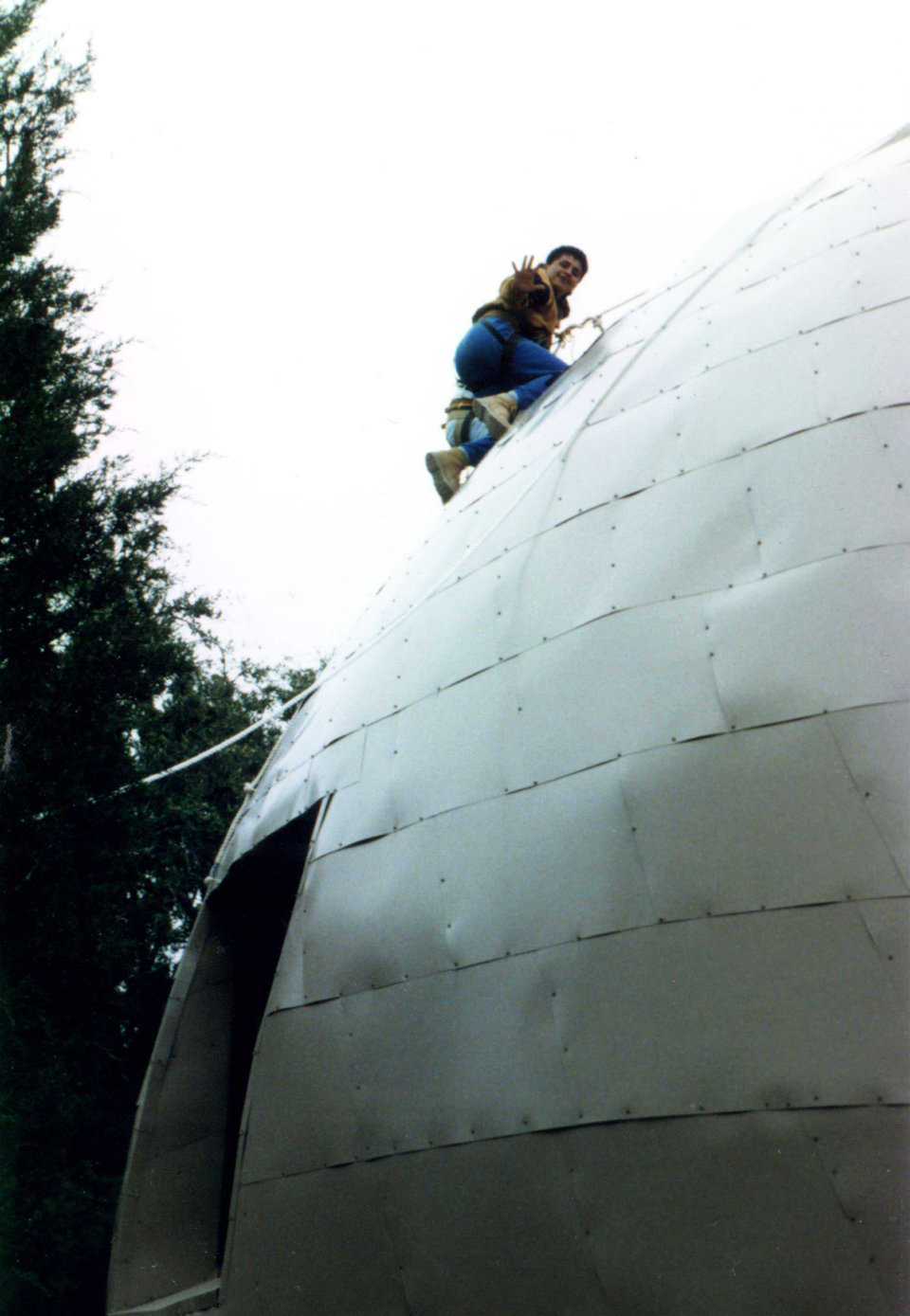

Going up! — Tethered worker installs metal cladding.

Going up! — Tethered worker installs metal cladding.

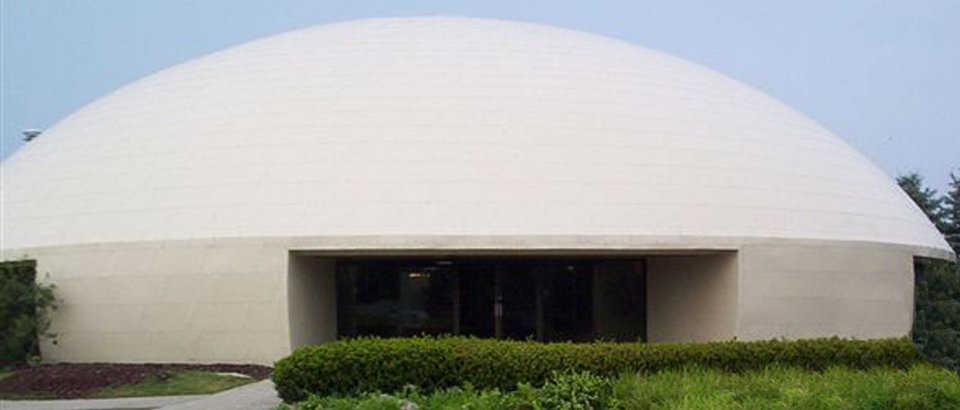

Ribbon Technology Corp. — Built in 1980, in the Columbus, OH area, this metal-clad Monolithic Dome has a diameter of 100 feet.

Ribbon Technology Corp. — Built in 1980, in the Columbus, OH area, this metal-clad Monolithic Dome has a diameter of 100 feet.

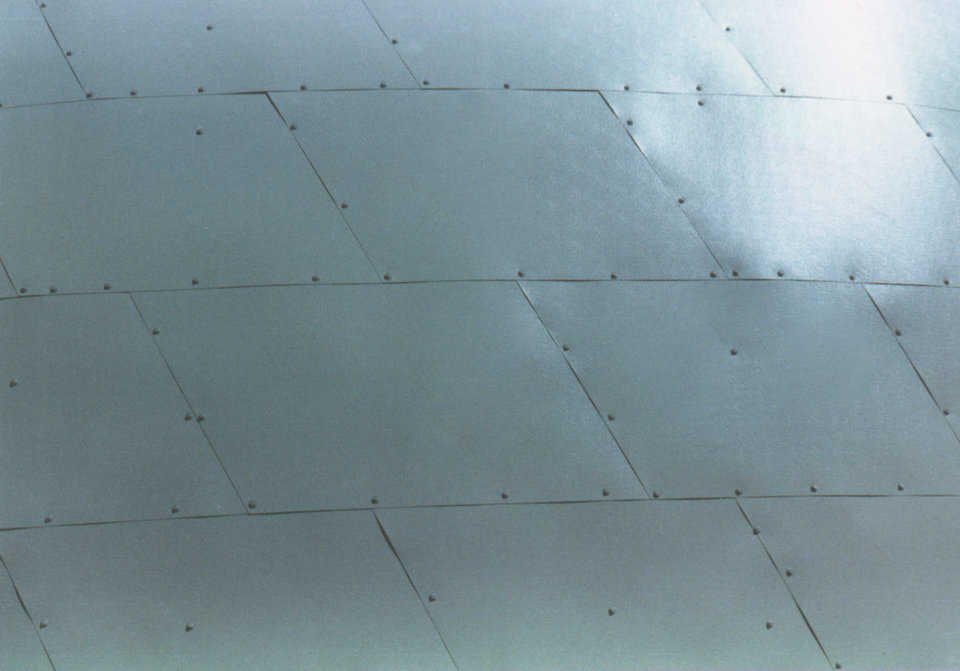

Variety — Steel metal cladding can be ordered in a variety of thicknesses, widths and colors.

Variety — Steel metal cladding can be ordered in a variety of thicknesses, widths and colors.

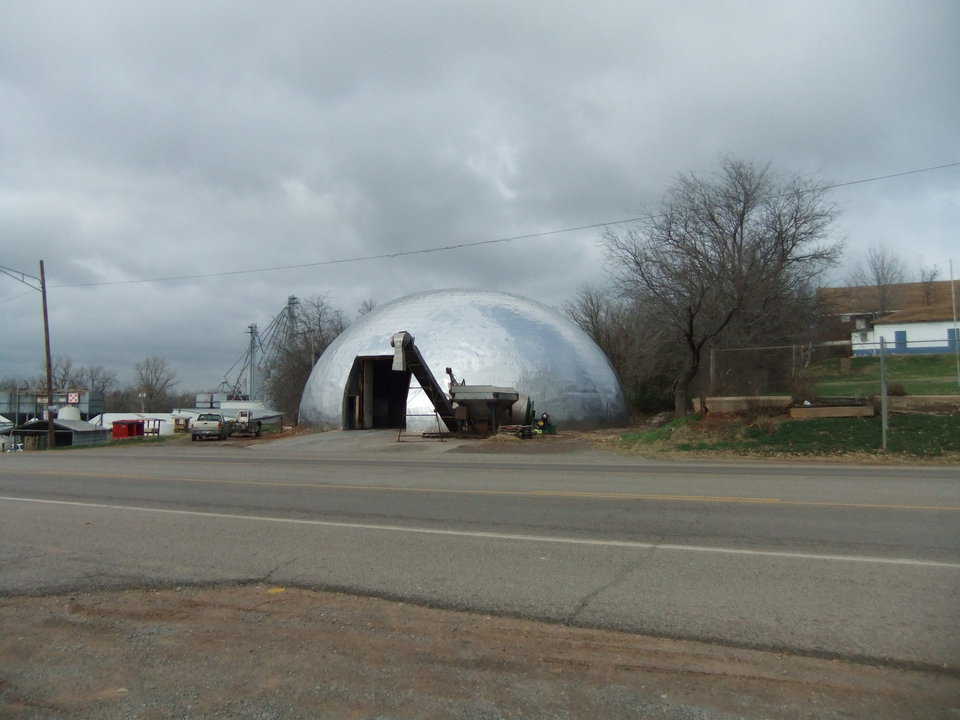

What a difference! This Monolithic fertilizer storage dome now sparkles and shines and will continue doing so for many, many years.

What a difference! This Monolithic fertilizer storage dome now sparkles and shines and will continue doing so for many, many years.
