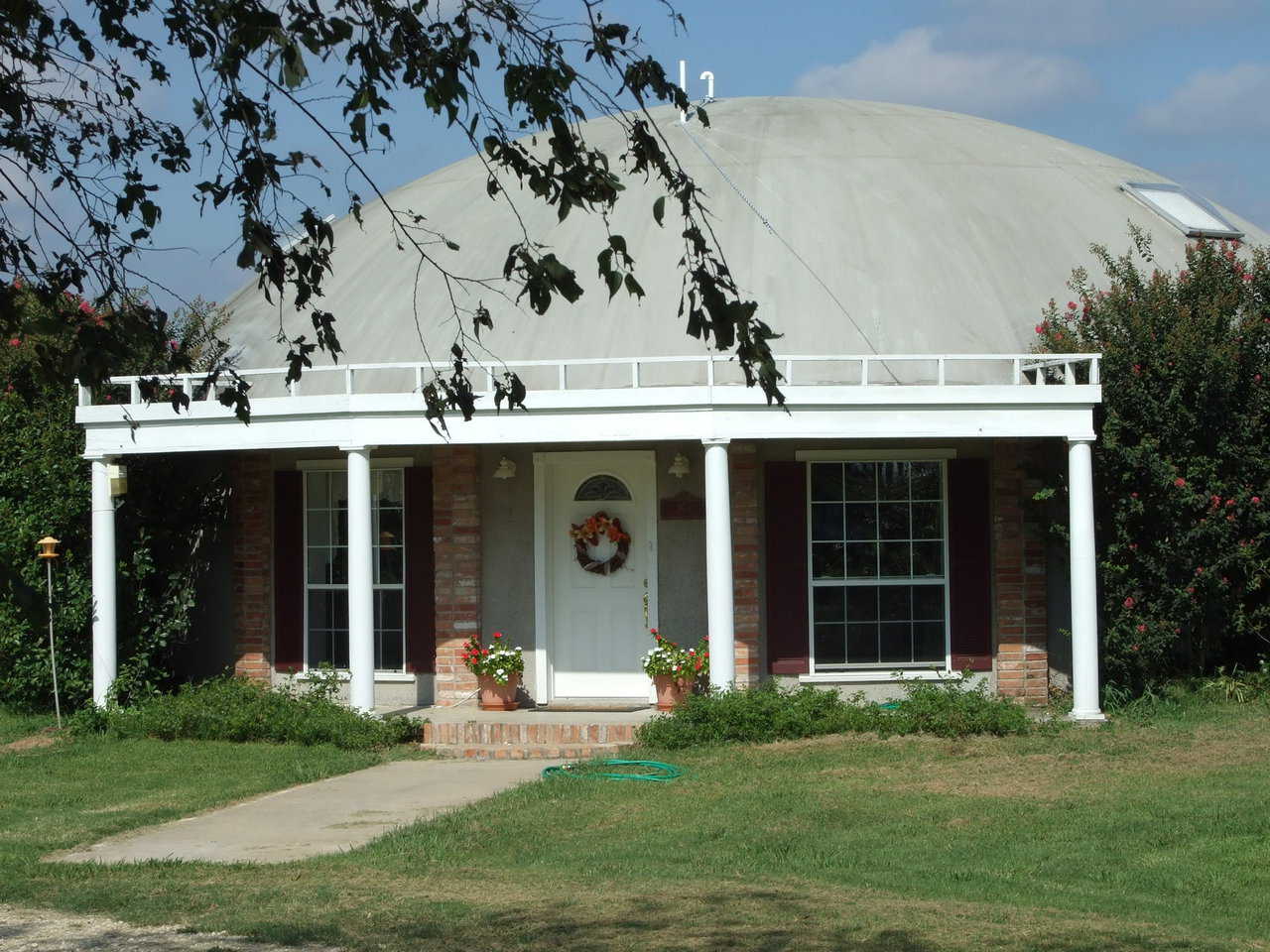

The Orion — The Orion has straight, outer walls, but they do not compromise this Monolithic Dome’s strength, disaster-resistance and energy-efficiency.

The Orion — The Orion has straight, outer walls, but they do not compromise this Monolithic Dome’s strength, disaster-resistance and energy-efficiency.


The Orion

Straight walls with Monolithic® strength

How would you like to be the first owner and occupant of a new kind of house? “It’s a real kick,” said Gary Clark of Italy, Texas. Gary, vice president of operations at MDI had recently moved into the first Orion — the youngest, newest sibling in the Monolithic Dome family.

“But, being first has a disadvantage, too,” Gary quickly added. "Because there’s so much interest in this new type of dome, we have a steady stream of visitors wanting to see it.

“And many think the Orion is the dome we’ll first see as a subdivision of Monolithic Domes. That was an observation frequently made by people who attended our “Conference 2000” and toured the Orion."

What makes the Orion so appealing and very possibly just the design that will overcome the reluctance of many to choose a nontraditional structure? Straight walls or as Gary put it, “The Orion combines the best of two worlds: the strength and integrity of a Monolithic Dome with the convenience and conventional look of straight outer walls.”

The idea of a spherical dome with straight walls was entertained and actively pursued at MDI for a long time. “It all started to come together when we began building spray-in-place concrete fences, using plywood forms and spraying them with concrete,” Gary said. “We soon realized we could adapt this technology to making walls.”

A new kind of dome dream home

Construction of Gary’s Orion began in September 1999 with the pouring of its concrete foundation, forty-six feet in diameter. To create the Orion’s outer wall, seventeen 8′ × 8′ plywood panels, each topped with a twelve-inch ledge, were attached to this foundation and sprayed with two inches of concrete. After an Airform, 48′ × 12′, was secured at the top of the wall and inflated, the building process proceeded as it would for any Monolithic Dome.

When completed, Gary had a two-story dome whose straight outer wall encompassed 2400 square feet of living space. Two bedrooms, a full bath, a mechanical room for heating and cooling equipment, and generous storage share the upstairs living space. The downstairs includes a master bedroom, bath with Jacuzzi tub and walk-in closet, an additional half-bath cleverly tucked under the staircase, kitchen with walk-in pantry and cupboards with swing-out shelves, living and family rooms, a formal dining area and utility room.

For his Orion, Gary chose a standard, forced-air heating and cooling system. He said, “In our climate, a conventional house of this size usually requires a five-ton unit for cooling. We’re using two tons. So far this summer (June), the air conditioning hasn’t kicked on at all. Just with our ceiling fans — one in just about every room — we’ve maintained a comfortable seventy-five degrees.”

“The heating,” Gary continued, “has banks of heating elements. There are four of those banks, and each bank produces five kilowatts of heat. I disconnected three of those banks and use only one.”

Decorating and media coverage

With straight walls, the placement of large furniture pieces like an entertainment center and piano did not present a problem.

Both paint and wallpaper, some with matching borders, was selected for the walls. “But,” Gary said, “you’re not in any way limited. You can do the Orion’s walls with whatever you like: paint, paper, plaster, paneling, stone, brick, you name it.”

The design choices coupled with the Orion’s unique Monolithic Dome design and durability brought television cameras to Gary’s front door. Dallas’ Channel Eleven focused a segment of its popular afternoon show “Positively Texas” on the Orion. Gary and the TV crew toured the entire house while Gary talked about the dome’s ability to withstand natural disasters, particularly tornadoes that often threaten this part of Texas.

No surprises

Asked about unpleasant surprises the Orion’s construction crew may have encountered while building the dome, Gary said, “Every project has its gotchas. That’s just the way it is. Considering that this Orion was our first, it really went smoothly. About the only problem we had was teaching ourselves how to efficiently attach the Airform to the ledge running along the top of the wall. Once we figured that out, it was pretty much business as usual, just like building any Monolithic Dome.”

Orion advantages

  • Easier to mount doors and windows.
  • A more conventional look.
  • More straight wall area — preferred by many for hanging pictures, placing built-ins.
  • Easier public acceptability in traditional, conventional areas.
  • Variety of exterior finishes: brick, stucco, paint.
  • Strength and durability approximating that of the Monolithic Dome.
  • Low, ongoing maintenance and energy consumption.
  • Versatility of size and shape: Wall can consist of virtually any reasonable number of panels, arranged in various shapes. Airform can be relatively low for a single-floor Orion or tall enough to accommodate second and third floors.

Orion disadvantages

Monolithic’s president David South said, “At this point, we see only two disadvantages to the Orion. We expect the cost of the Orion’s shell to be approximately ten percent higher than costs for a conventional Monolithic Dome. However, we anticipate some savings on the finish-out of the Orion, since its doors and windows just pop in place, much like those in traditional houses. The second disadvantage involves the Orion’s wall construction. Since it takes place outdoors, inclement weather could result in construction delays.”

Image: Spacious and Comfortable — Its high ceiling gives this living room an expansive look while its fireplace creates an inviting focus point.

Spacious and Comfortable — Its high ceiling gives this living room an expansive look while its fireplace creates an inviting focus point.

Image: Decorating the Orion — With straight walls, the placement of large furniture pieces, like a piano, did not present a problem.

Decorating the Orion — With straight walls, the placement of large furniture pieces, like a piano, did not present a problem.

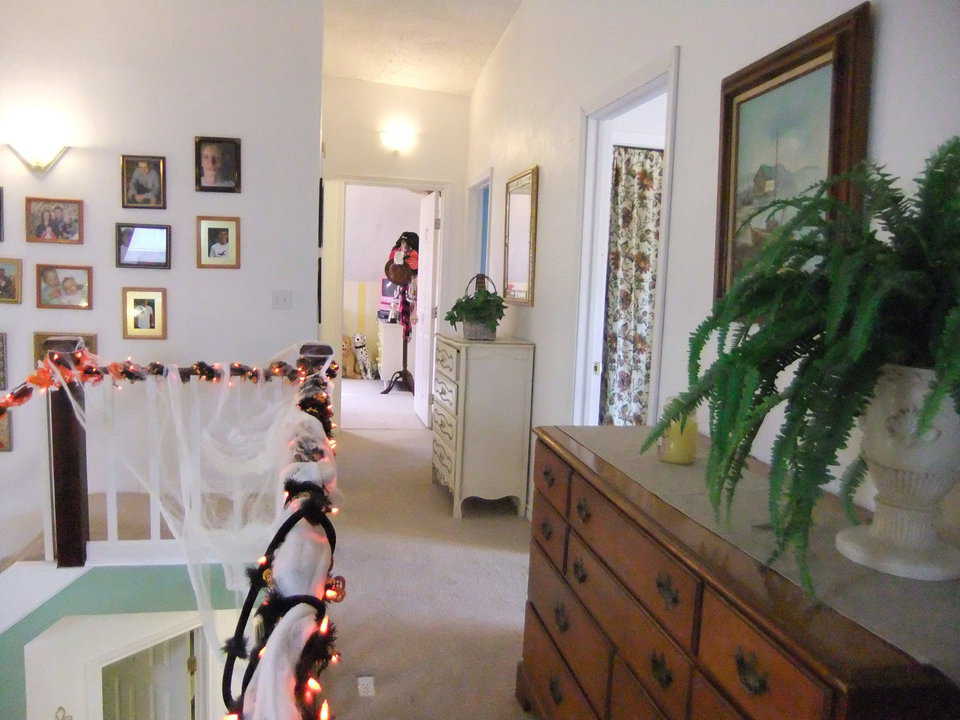

Image: Storage — Dressers and chests fitted against dividing walls provide extra storage.

Storage — Dressers and chests fitted against dividing walls provide extra storage.

Image: Comfy and Cozy — The artificial fireplace is not a source of heat but of atmosphere. This Orion has a standard, forced-air heating and cooling system.

Comfy and Cozy — The artificial fireplace is not a source of heat but of atmosphere. This Orion has a standard, forced-air heating and cooling system.

Image: Family Room — Everyone gets an overstuffed seat to snuggle into in this family room!

Family Room — Everyone gets an overstuffed seat to snuggle into in this family room!

Image: Kitchen and Breakfast Bar — Warmly painted walls and gaily curtained windows create a delightful cooking and eating area.

Kitchen and Breakfast Bar — Warmly painted walls and gaily curtained windows create a delightful cooking and eating area.

Image: Plate Collection — A collection of blue plates enhances the open area above the kitchen cupboards.

Plate Collection — A collection of blue plates enhances the open area above the kitchen cupboards.

Image: Streamlined Kitchen — The placement of appliances is well planned so space is not wasted.

Streamlined Kitchen — The placement of appliances is well planned so space is not wasted.

Image: Family Dining Area — One wall sports a large window so sunshine pours through while another is painted a happy blue.

Family Dining Area — One wall sports a large window so sunshine pours through while another is painted a happy blue.

Image: Master Bedroom — It’s warm and comfortable.

Master Bedroom — It’s warm and comfortable.

Image: Master Bath — It includes a Jacuzzi tub and a walk-in closet.

Master Bath — It includes a Jacuzzi tub and a walk-in closet.

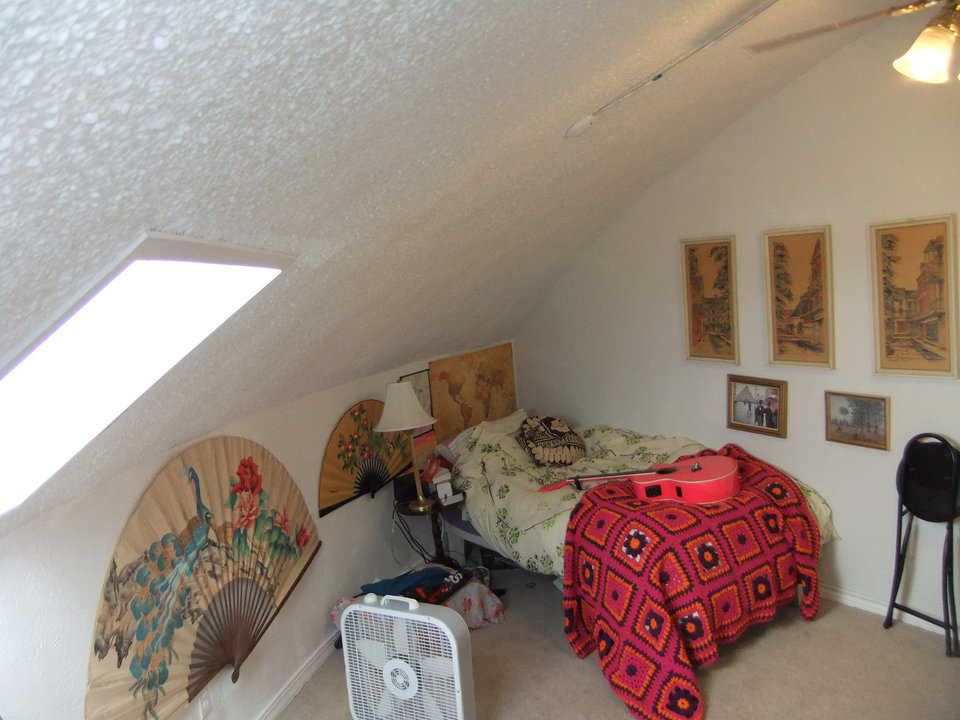

Image: Sleeping Area — The loft provides room for comfortable sleeping areas.

Sleeping Area — The loft provides room for comfortable sleeping areas.

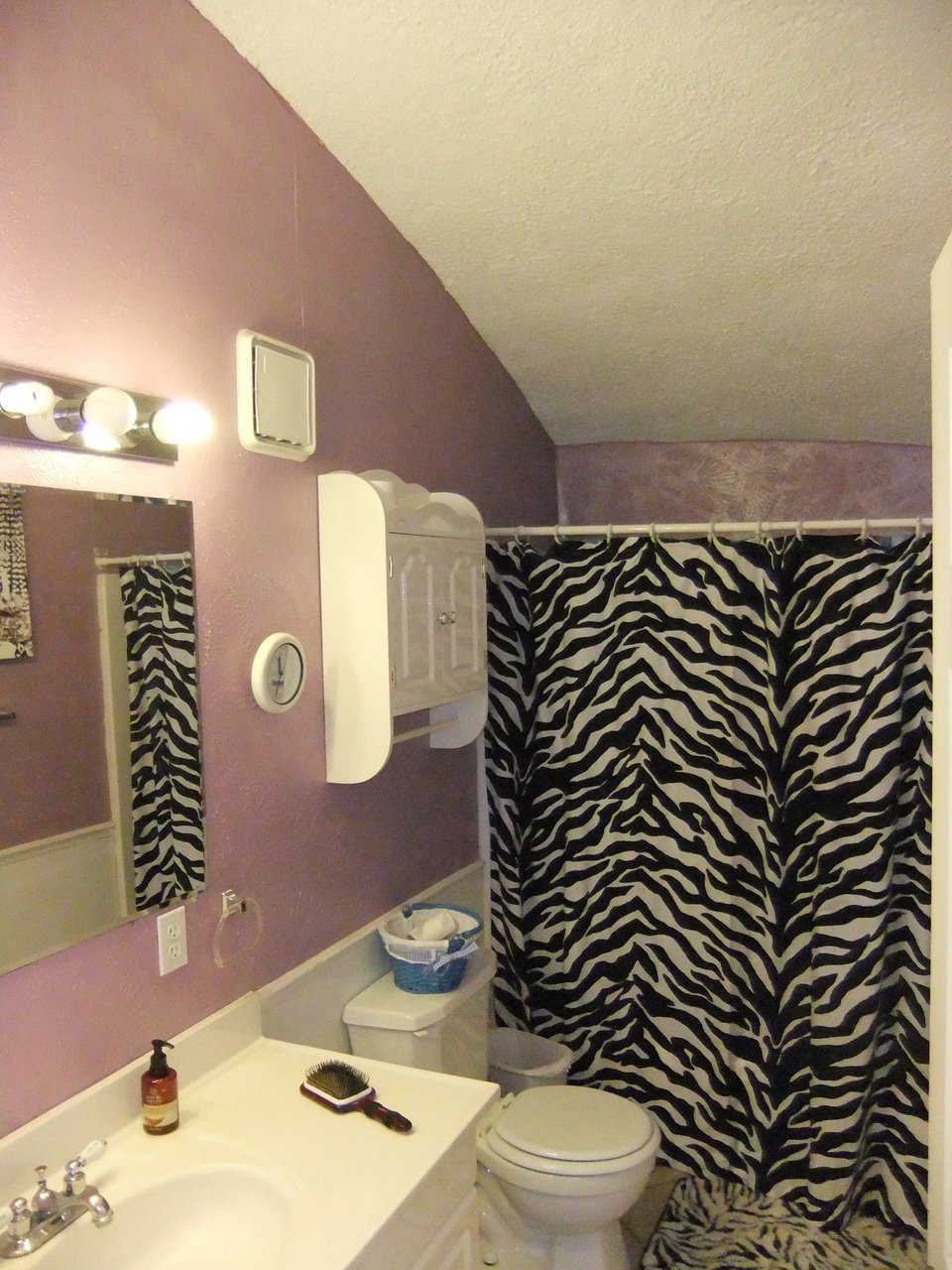

Image: Bathroom — It has a tub and shower.

Bathroom — It has a tub and shower.

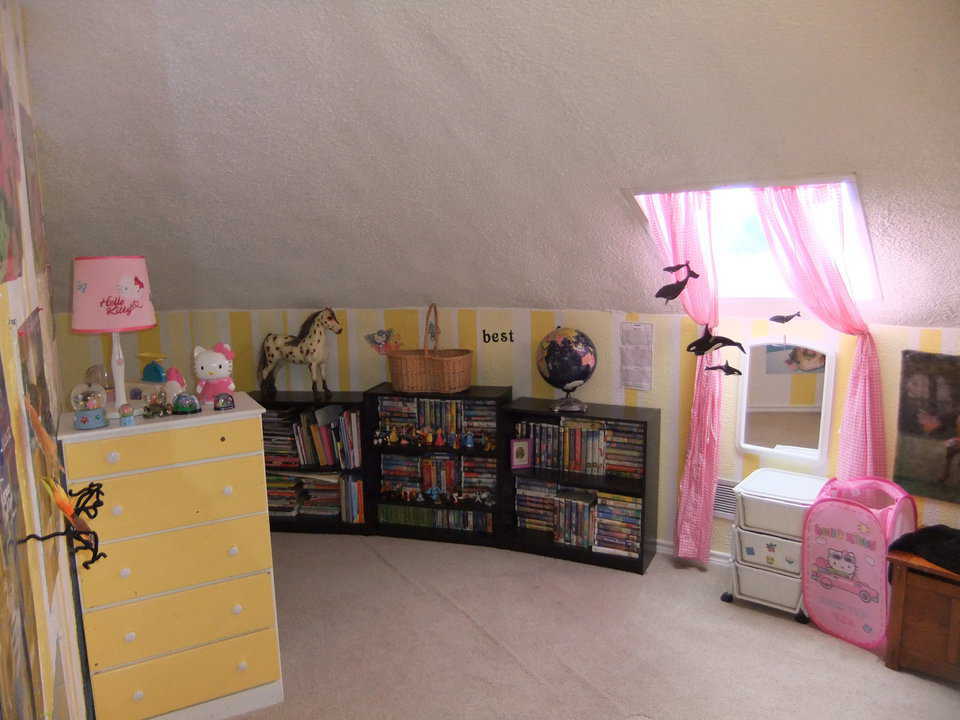

Image: Loft — It has lots of books and lots of pink!

Loft — It has lots of books and lots of pink!

Image: Extra Storage — All that stuff has to go somewhere!

Extra Storage — All that stuff has to go somewhere!

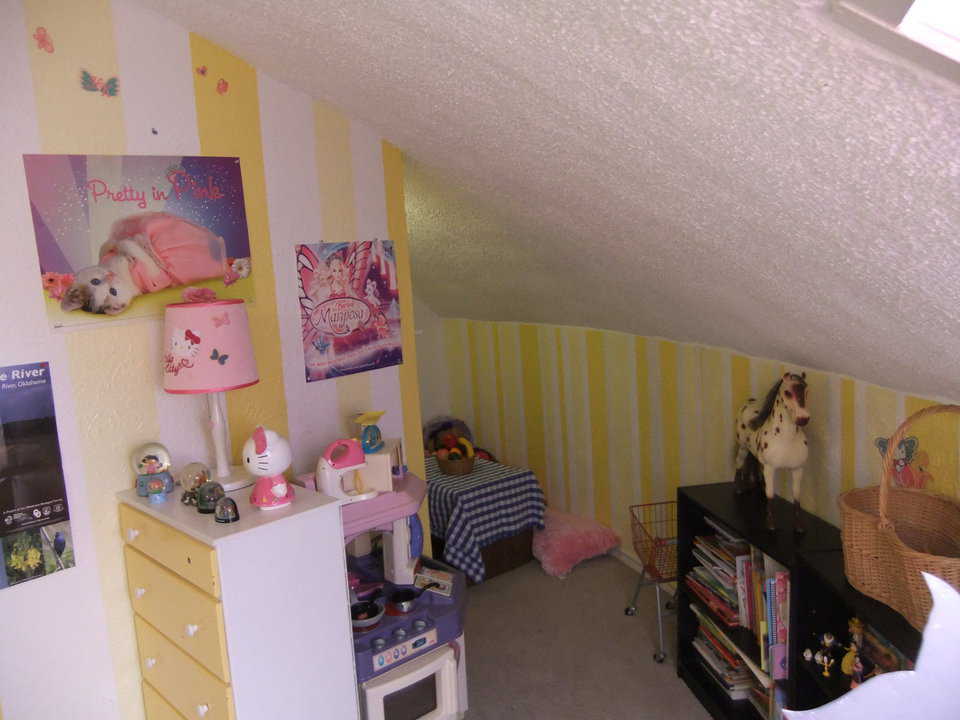

Image: A Loft of Toys — The loft is definitely a kids’ area.

A Loft of Toys — The loft is definitely a kids’ area.

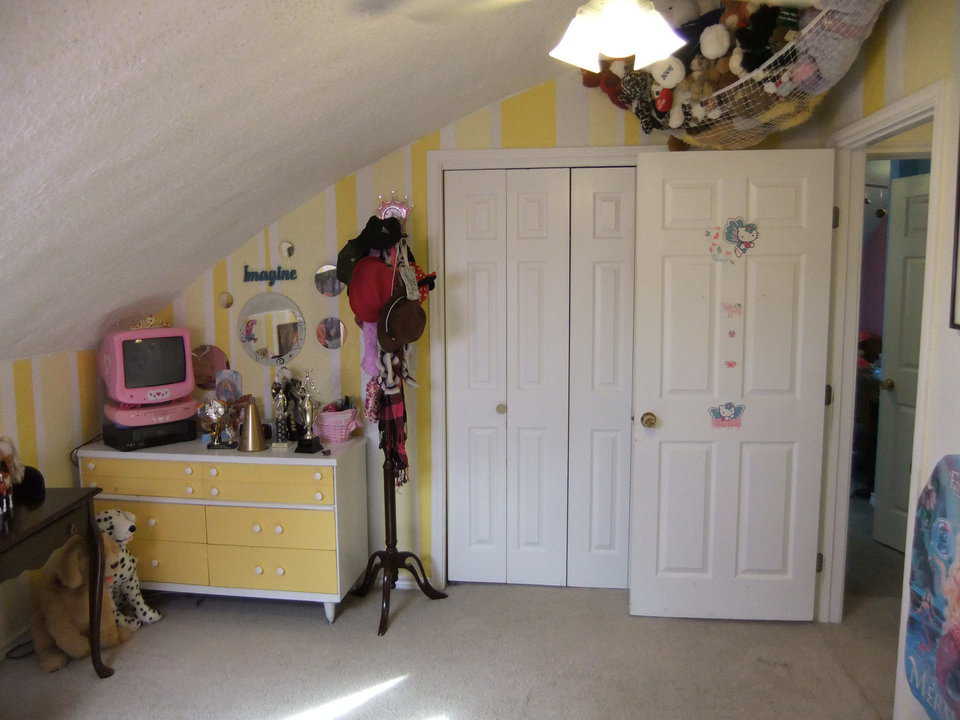

Image: Sweet Dreams — It’s easy to dream in this cozy area.

Sweet Dreams — It’s easy to dream in this cozy area.
